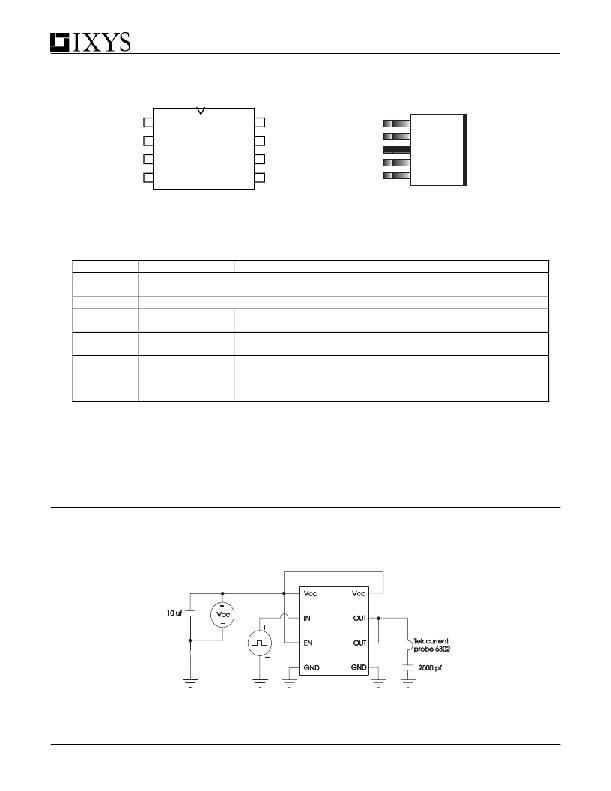

IXDD408PI/408SI/408YI/408CI
Pin Configurations
1 VCC
2 IN
3 EN
4 GND
I
X
D
D
4
0
8
VCC 8
OUT 7
OUT 6
GND 5
1
2
3
4
5
Vcc
OUT
GND
IN
EN
Pin Description
8 PIN DIP (PI)
SO8 (SI)
TO220 (CI)
TO263 (YI)
SYMBOL
VCC
IN
EN
OUT
GND
FUNCTION
Supply Voltage
Input
Enable
Output
Ground
DESCRIPTION
Positive power-supply voltage input. This pin provides power to the
entire chip. The range for this voltage is from 4.5V to 25V.
Input signal-TTL or CMOS compatible.
The system enable pin. This pin, when driven low, disables the chip,
forcing high impedance state to the output.
Driver Output. For application purposes, this pin is connected,
through a resistor, to Gate of a MOSFET/IGBT.
The system ground pin. Internally connected to all circuitry, this pin
provides ground reference for the entire chip. This pin should be
connected to a low noise analog ground plane for optimum
performance.
Note 1: Operating the device beyond parameters with listed “absolute maximum ratings” may cause permanent
damage to the device. Typical values indicate conditions for which the device is intended to be functional, but do not
guarantee specific performance limits. The guaranteed specifications apply only for the test conditions listed.
Exposure to absolute maximum rated conditions for extended periods may affect device reliability.
CAUTION: These devices are sensitive to electrostatic discharge; follow proper ESD procedures
when handling and assembling this component.
Figure 2 - Characteristics Test Diagram
V IN
3
